Yudian AI-500 digital temperature indicator 48x96

FOB Reference Price:Get Latest Price
US $20.7-38 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
1000 Piece/Pieces per Day
Port:
XIAMEN
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Yudian
Model Number:
AI-500
Usage:
Industrial
Theory:
Temperature indicator, pressure indicator
Accuracy:
0.3%FS
Temperature range:
0-9999
Color:
Grey or Black
Measurement accuracy:
0.2%FS±0.1°C
Power consumption:
≤5W
Temperature display resolution:
1°C or 0.1°C can choose
Temperature shift:
≤0.01%FS/℃ (typical value is 50ppm/℃)
Power supply:
100-240VAC, -15%, +10% / 50-60Hz; 120-240VDC; 24VDC/AC, -15%, +10%
Electromagnetic compatibility (EMC):
IEC61000-4-4, ± 4KV/5KHz; IEC61000-4-5, 4KV
Operating Ambient:
temperature -10^+60℃; humidity ≤90%RH
name:
digital temperature indicator 48x96
Packaging & Delivery
Packaging Details
STANDARD EXPORT CARTON
Delivery Time
Shipped in 3 days after payment
Video Description

Yudian AI-500 digital temperature indicator 48x96









AI-500 intelligent digital indicator

 Suitable for measuring and displaying temperature, pressure, flow, level, humidity etc

 Main features:

High measurement accuracy: 0.3%FS ±1°C

Programmable and modular input

Dual display windows, easy to set parameters and alarms points.

Universal input power- 85~264VAC, or 11~26VAC/VDC

Alarms can be outputted to different relays or share one.

RS485 communication interface

Retransmission function

CE, RoHS, ISO9001 approved

Specification:

Control mode

On-off control mode
AI PID Control with Auto Tuning(AT)

Measurement

accuracy

0.3%FS ±1°C

Resolution

0.1°C

Input

Thermocouple: K, S, R, T, E, J, N, WRe3~WRe25, WRe5~WRe26

RTD: Pt100, Cu50

Linear voltage:0~1V, 0~5V,1~5V,0~100mv,0~20mv, 0~60mV

Linear Current: 0~20mA, 4~20mA

Linear resistor: 0~80ohm, 0~400ohm

-9990~3000 defined by user

Input range

K(-100~1300°C),S(0~1700°C),R(0~1600°C),T(-200~390°C),E(0~800°C), J(0~1000°C),B(600~1800°C),Cu50(-50~150°C),PT100(-200~800°C)

Output

(modularized)

Relay output (NO+NC): 250VAC/2A or 30VDC/1A

Linear current : can transmitter process value

General specifications

Voltage: support AC85-265V, 50/60Hz or DC24V.

Power consumption: ≤5W

Electromagnetic compatibility (EMC) : ±4KV/5KHz according to IEC61000-4-4;

4KV according to IEC61000-4-5.

Operating Ambient : temperature -10~60°C; humidity ≤90%RH

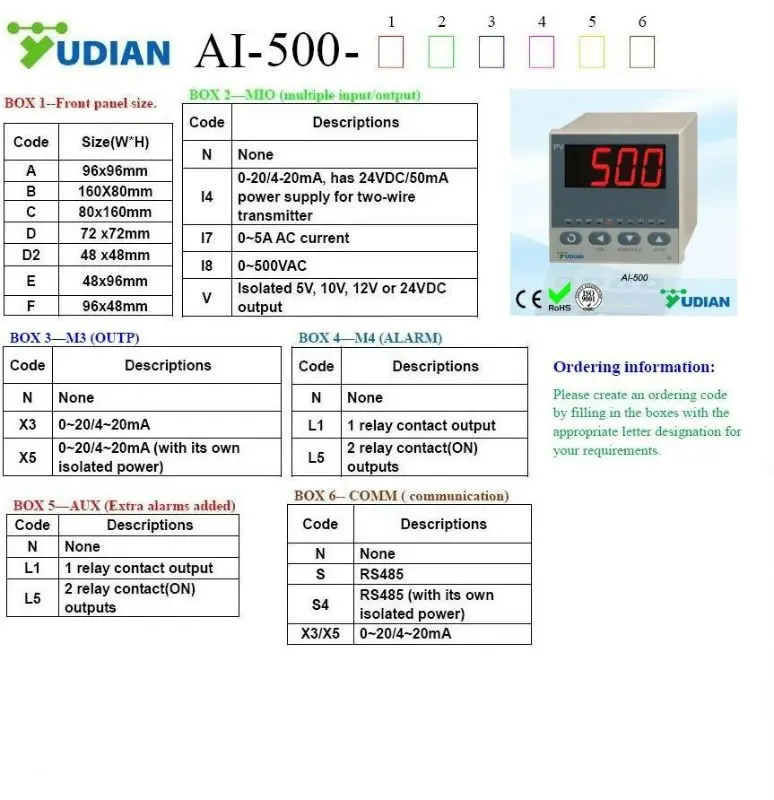

Ordering code:

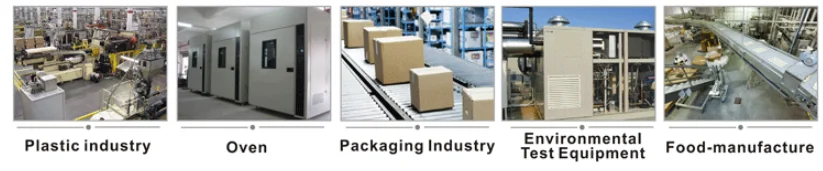

 Applicatons:

Ideal suitable for temperature process control in plastic industry, food manufacturing, packaging industry, heating ovens and environmental testing equipment, etc.





Company Information



Why choose Yudian?

1)Factory with 25 years experience.

2)Quick delivery ( within 3~5 working days).

3)Retail/Wholesale/OEM/ODM available .

    We expect to cooperate with machinery manufacturers, better price for bulk order.

4)We provide after sales service and technical assistance as per the customers requirement and needs.

FAQ

1. How long will you give me the reply?
we will contact you in 2 hours as soon as possible
2. Could I get samples?
Yes,we have products in stock ,so you can get the samples quickly.
3. How about the quality of the controller?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4. Could I visit your factory?
Of course,if you need we will help you to visit our factory.
5. If I have paid,when will you help me to produce?

We will start producing immediately after receiving the payment.
