yudian ai 501 yudian temperature 501 temperature display unit

FOB Reference Price:Get Latest Price
US $24.2-52 / Pieces | 1 Piece/Pieces (Min. Order)
Contact Supplier Start Order
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Yudian
Model Number:
AI-501
Usage:
Industrial
Theory:
Temperature Transmitter
Accuracy:
0.3%FS±0.1°C
Temperature range:
0-9999°C
Color:
black/grey
Temperature display resolution:
1°C or 0.1°C can choose
Power supply:
100-240VAC, -15%, +10% / 50-60HZ
Display:
Double row digital tube
Product name:
yudian ai 501 yudian temperature 501 temperature display unit
Supply Ability
Supply Ability:
3000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
STANDARD EXPORT CARTON
Port
XiaMen
Lead Time :
Shipped in 3 days after payment
Video Description

yudian ai 501 yudian temperature 501 temperature display unit

eva



__-02_-03

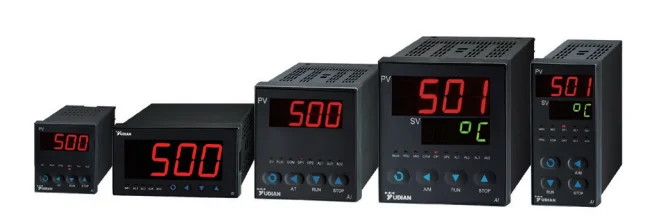

yudian ai 501

AI-501 intelligent digital temperature pressure indicator

 Suitable for measuring and displaying temperature, pressure, flow, level, humidity etc



Main features:

 High measurement accuracy: 0.3%FS ±1°C

Programmable and modular input

Dual display windows, easy to set parameters and alarms points.

Universal input power- 85~264VAC, or 11~26VAC/VDC

Alarms can be outputted to different relays or share one.

RS485 communication interface

Retransmission function

CE, RoHS, ISO9001 approved



Specification:



Control mode

On-off control mode
AI PID Control with Auto Tuning(AT)

Measurement

accuracy

0.3%FS ±1°C

Resolution

0.1°C

Input

Thermocouple: K, S, R, T, E, J, N, WRe3~WRe25, WRe5~WRe26

RTD: Pt100, Cu50

Linear voltage:0~1V, 0~5V,1~5V,0~100mv,0~20mv, 0~60mV

Linear Current: 0~20mA, 4~20mA

Linear resistor: 0~80ohm, 0~400ohm

-9990~3000 defined by user

Input range

K(-100~1300°C),S(0~1700°C),R(0~1600°C),T(-200~390°C),E(0~800°C), J(0~1000°C),B(600~1800°C),Cu50(-50~150°C),PT100(-200~800°C)

Output

(modularized)

Relay output (NO+NC): 250VAC/2A or 30VDC/1A

Linear current : can transmitter process value

General specifications

Voltage: support AC85-265V, 50/60Hz or DC24V.

Power consumption: ≤5W

Electromagnetic compatibility (EMC) : ±4KV/5KHz according to IEC61000-4-4;

4KV according to IEC61000-4-5.

Operating Ambient : temperature -10~60°C; humidity ≤90%RH

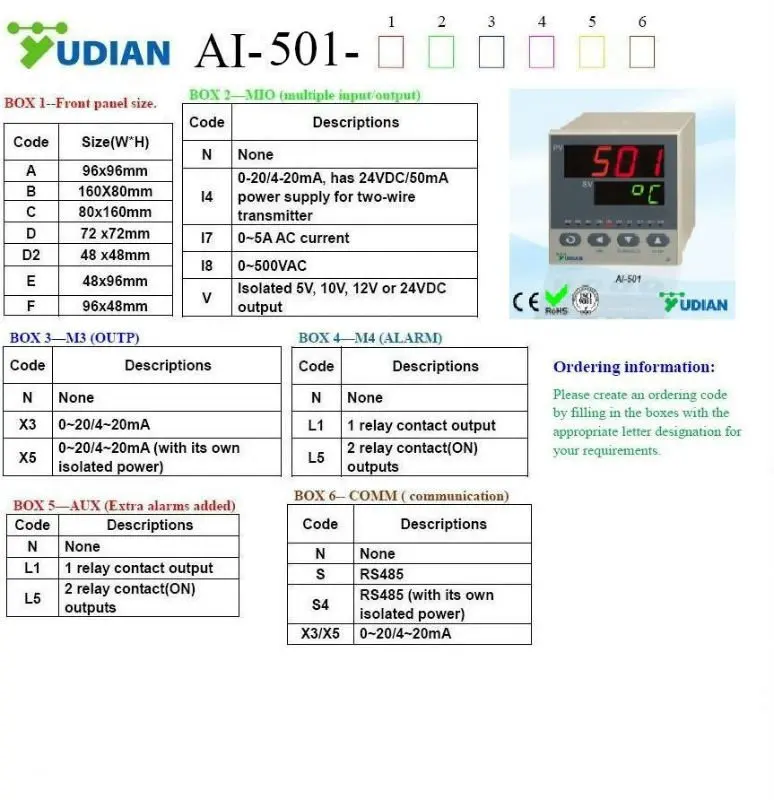

Ordering code:



Ordering code:



You will get

yudian ai 501

Company Information

 yudian ai 501ABOUT US(1)PARTNERS

Why choose Yudian?

1)Factory with 25 years experience.

2)Quick delivery ( within 3~5 working days).

3)Retail/Wholesale/OEM/ODM available .

    We expect to cooperate with machinery manufacturers, better price for bulk order.

4)We provide after sales service and technical assistance as per the customers requirement and needs.

FAQ

1. How long will you give me the reply?
we will contact you in 2 hours as soon as possible
2. Could I get samples?
Yes,we have products in stock ,so you can get the samples quickly.
3. How about the quality of the controller?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4. Could I visit your factory?
Of course,if you need we will help you to visit our factory.
5. If I have paid,when will you help me to produce?
We will start producing immediately after receiving the payment.
