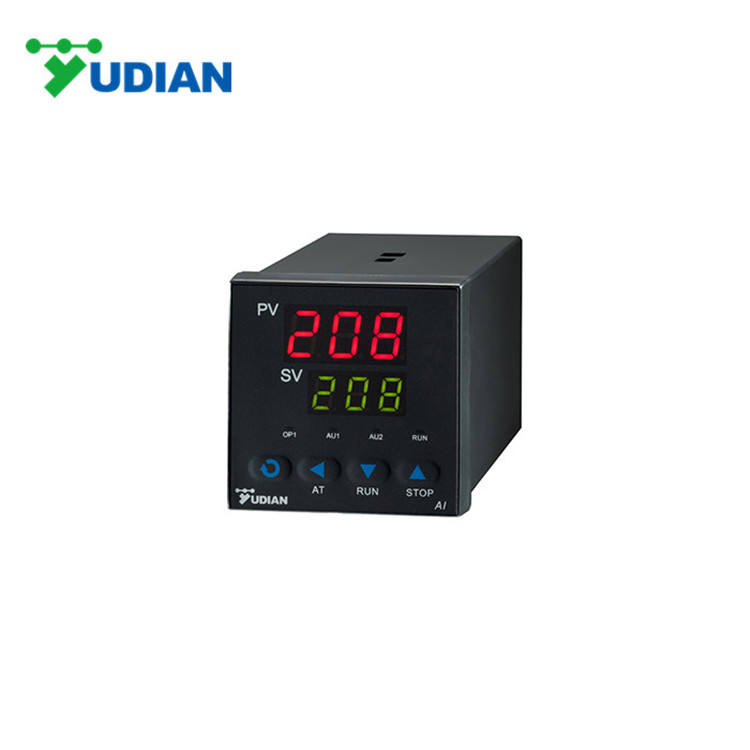

Yudian AI-208 cheap price digital temperature control

FOB Reference Price:Get Latest Price
US $15.3-35.6 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
YUDIAN
Model Number:
AI-208G
Usage:
Industrial
Theory:
Temperature Controller
Accuracy:
0.3%FS
Temperature range:
-99~999
OUTPUT:
SSR
Color:
Grey or Black
Operating Ambient:
-10℃ to 60℃ ; ≤90%RH
Power supply:
100-240VAC/ 50Hz; 120-240VDC
Product size:
48*48, 96*96, 96*48
Supply Ability
Supply Ability:
10000 Unit/Units per Week
Packaging & Delivery
Packaging Details
Standard carton box for export
Port
Any ports in China
Lead Time :
Within 2 working days after payment confirmed
Video Description

eva

Yudian AI-208 cheap price digital temperature control

DETAILED IMAGES.jpg

                  208 500x240.jpg

                          Yudian AI-208G intelligent digital temperature control

207 208 218 key point.png208 detail_plus.jpg



PRODUCT DESCRIPTION.jpg

___________________________________________________________________________

  I. Technical Specification:



1. Input type : K,T, E, J, N, PT100

2. output type: Relay, SSR voltage output.

3. Accuracy : 0.3%FS±2°C

4. Resolution : 1℃ or 0.1

5. Control mode: On-off control or PID control

6. Alarm function: High Alarm, Lower limit alarm,Deviation High Alarm.

7. Power supply voltage rating: 100-240VAC, -15%, +10% / 50-60Hz or 24VDC

8. Ambient temperature: -10~+60°C, Humidity: 0~90RH%

___________________________________________________________________________

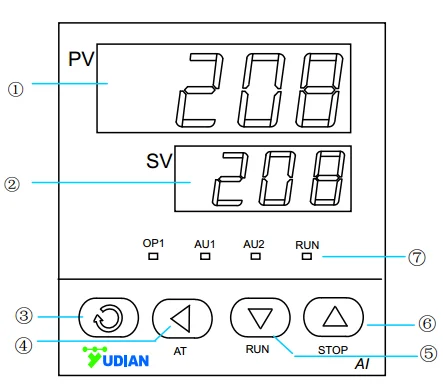

  II. Front panel and Operation:



1. Process Valuse (PV), or parameter code

2. Set Values (SV), alarming code, or value of a parameter

3. Setup key, for accessing parameter table, and confirming change

4. Data shift key, also for activating auto turning

5. Data decrease key

6. Data increase key

7. Status display LED





___________________________________________________________________________



  III. Model Code:



The type of AI-208 is made up of 4 parts:



                                           AI-208     A1   G   L0

                                               1           2     3     4

Part 1:

       AI-208 Type PID economic temperature controller, accurancy  0.3%FS±2°C



Part 2: Dimension



 Part  3:Output Type

     G: SSR voltage output, capacity  30mA/5VDC



 Part 4:  Alarm

    N: No alarm.

    L0:  1 alarm

    L3:  2 alarm

___________________________________________________________________________





  IV. Installation and wiring:

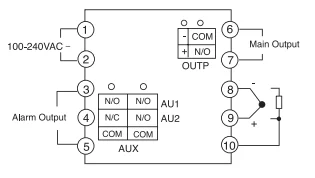

                               ( Wiring graph for A,B,E,F size )                                                       ( Wiring graph for A1,B1,E1,F1 size )

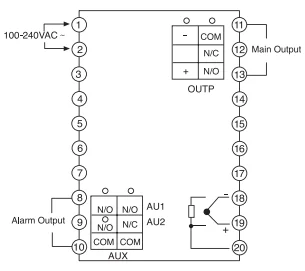

                               ( Wiring graph for D size )                                                                          ( Wiring graph for D1,D2 size )

___________________________________________________________________________
