industrial digital k type modular temperature controller

FOB Reference Price:Get Latest Price
US $18.9-36.1 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Yudian
Model Number:
AI-208
Usage:
Industrial
Theory:
Temperature Controller
Accuracy:
0.3%FS
Temperature range:
-999~+999
Product name:
industrial digital digital k type modular temperature controller
Control Model:
On-off , PID Control
Power supply:
100~240 VAC, 50~60Hz
Application:
Light industry, oven, furnace, lab equipment,
Measurement Accuracy:
0.3% FS ± 1℃
Input:
Thermocouple: K, S, R, E, J, N, Pt 100
Output:
RELAY/SSR
Size:
96*96, 160*80, 72*72, 48*48, 48*96, 96*48
Ambient temperature:
-10℃~+60℃, 0~90 RH%
Power Consumption:
≤2W
SupplyAbility
SupplyAbility:
60000 Unit/Units per Year
Packaging & Delivery
Packaging Details
Standard Export Carton with Yudian logo
Port
Xiamen
Lead Time :
Shipped in 3 days after payment
Video Description
Product Description



industrial digital digital k type modular temperature controller  iriss

 Product Details1

208

paste-pic-dp_uuid_9mqkm
Main Features
  • Designed specially for equipments that work in 0~+999℃, such as light industry, oven, furnace, lab equipment, cooling/heating equipments. Easy to learn and operate and lowest cost.
  • Basic panel is fixed with SSR or relay output modules, no need to add extra output modules.
  • Universal power supply 100~240VAC
  • Armed with AT and AI PID Intelligent control algprithm function.
  • Qualified with ISO9001, CE and CQC, satisfying European ROHS standard
Applications
•  Plastic Processing Machinery
•  Packaging Machinery
•  Furnace & Boilers
•  Laboratory Testing Machinery
•  Ovens & Incubators
•  Food Industry
•  Extrusion Machinery: Plastic/Rubber

Technical Specifications3heating controller.png

Power Input 100-240VDC, -15%, +10%/50-60Hz;  or 24 VDC/AC, -15%, +10%.
Input type

Thermocouple: K (-100~1300℃), E (0~1000℃), J (0~1200℃), N (0~1300℃)



Resistance temperature detector: Pt100





Control Outputs

relay 250VAC/2A or 30 VDC/1A





ssr driver - 12VDC/30mA





Alarm Outputs

1 channel relay(big volume & small volume ) : 30VDC/2A, 250VAC/2A



1 channel relay(small volume) 30VDC/1A, 250VAC/1A



2 channels relay: 30VDC/2A, 250VAC/2A



Power consumption≤ 5W
Operating AmbientTemperature -10~60℃; Humidity ≤90%RH
Front Panel size96*96mm, 160*80mm, 80*160mm, 48*96mm, 96*48mm, 48*48mm, 72*72mm

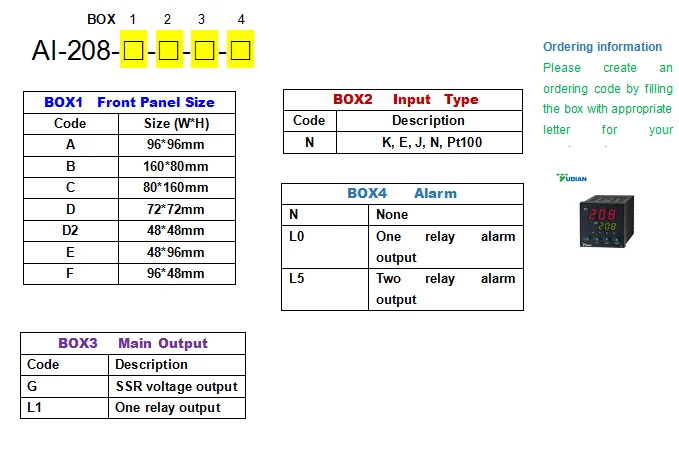

Model Solutions

Packaging & Shipping

  paste-pic-dp_uuid_b6t2t

Company Profile

 ABOUT US(1)

 OUR FACTORYPARTNERS

_

_-02

_-03

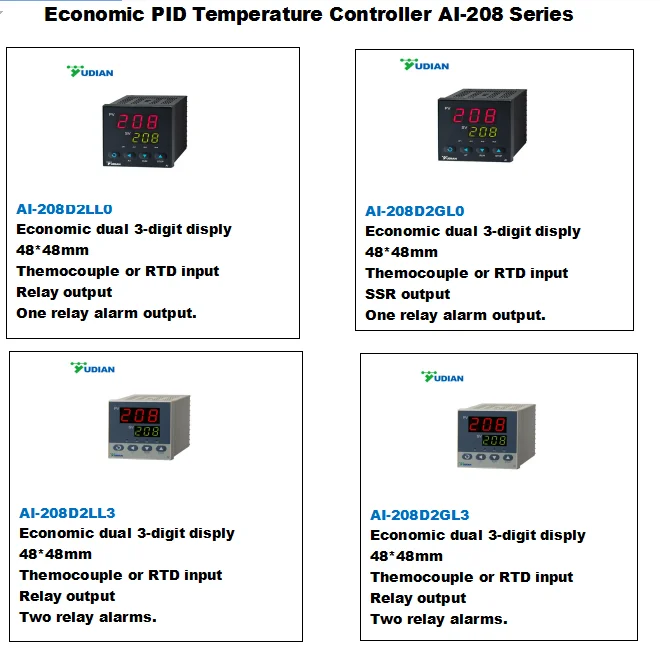

Other Products

paste-pic-dp_uuid_a95wm

FAQ
1. How to Get in Contact with Us?
Option OneRegister on Alibaba and leave us a message or talk to us on Trading Manager at the BOTTOM of this page
Option TwoCall Mobile 0086 18650118003 (Iris Wang)
2. Could I get samples of  thermocouple controller ?
Yes,we have products in stock ,so you can get the samples quickly.
3. How about the quality of  thermocouple controller ?
We have the certificate of ISO,CE and ROSH, we could send the testing report to you if needed.
4. Could I visit your factory?
Of course, we warmly welcome you to visit our factory.
5. If I have paid,when will you help me to produce?
Delivery will be within 3 working days after payment received.
