pid temperature controller dual input temperature controller

FOB Reference Price:Get Latest Price
US $57.5-90 / Unit | 1 Unit/Units (Min. Order)
Supply Ability:
60000 Unit/Units per Year
Port:
xiamen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Yudian
Model Number:
AI-7028D5
Usage:
Industrial
Theory:
Temperature Controller
Accuracy:
0.2%FS
Temperature range:
-9999~+9999
Product name:
pid temperature controller dual input temperature controller
Color:
Green or black
Power supply:
100~240VAC, 24 VDC
Size:
DIN rail
Input:
thermocouple, RTD, 4-20mA or 5V/10V
Output:
two-channel SSR,
Control Model:
On-off , PID Control
Functions:
control, alarm, retransmission, communication
Ambient temperature:
-10℃~+60℃, 0~90 RH%
Sampling rate:
250ms
Packaging & Delivery
Packaging Details
Standard Export Carton
Delivery Time
Shipped in 3 days after payment confirmed
Video Description
Product description

pid temperature controller dual input temperature controller

Descriptions

Description:

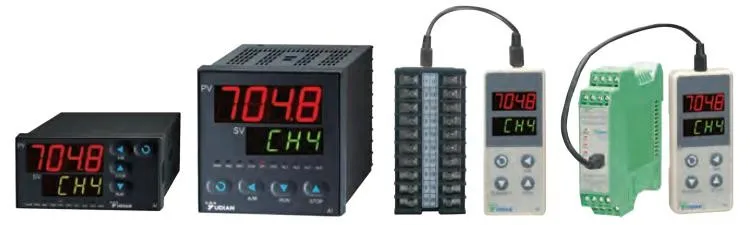

1. The multi-channel PID tmperature controller, incorporate two bright, easy to read 4-digit LED display.

2.  AI-7048/7028 is capable of measuring 4 channels of temperature, and every channel can define its own input specification. It can either work independently or cooperate with PLC(programmable Logic Controller ).



Features:

  • Providing up to 4 channels of configurable inputs, and supporting multiple thermocouple inputs with auto reference junction compensation and linear votage (MV) input with user define scale. Every channel has its own digital filtering and can adjust its filtering degree.
  • High performance hardware design, which greatly decreased temperature drift and the interference among four channels. Therefore, this multi-channel instrument obtains the same measurement accuracy and anti-interference ability as that of single channel instrument.
  • Every channel has independent high/low alarm, and the alarms can be allocated to different alarm outputs or the same alarm output (Just available for dimension E5)
  • Friendly and customized operating interface leads to easy leaming and simple manipulation. Up to 12 parameters can be promoted to immediate operator access in Field Parameter Table
  • Advanced communication unctions, compatible with the communication protocol of the other AI series instrument.
  • Universal power supply of 100-240VAC, or 24 VDC

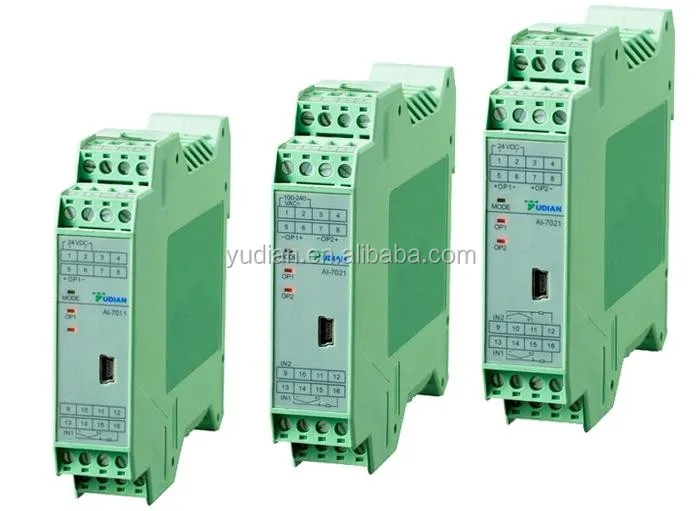

  • New generation D5/E5 rail mounted dimension. The width of D5 is only 22.5mm,. The instrument can be easily configured by connecting to handset display.

Specification



Input Type:

Thermocouple: K, S, R, E, J, T, B, N, WRe5-WRe26

Linear voltage: 0-20mV, 0-60mV, 0-100mV, 0-1V, ect.

Instrument input range: K (0-1300℃),S (0-1700℃), R(0-1700℃), E(0-1000℃), J(0-1200℃), T(-200-+350℃), B(0-1800℃), N(0-1300℃)

Measurement Accuracy: 0.2%±0.1℃

Sampling rate: 250ms

Control period: 0.48 sec/ 4 channel

Power supply: 100-240VAC, -15%, +10%/50Hz; 24 VDC, or 5 VA
