Yudian AI-500 led digital indicator

Customs Data
FOB Reference Price:Get Latest Price
US $18.5-37 / Pieces | 1 Piece/Pieces (Min. Order)
Contact Supplier Start Order
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Yudian
Model Number:
AI-500
Usage:
Industrial
Theory:
Temperature indicator, led digital indicator
Accuracy:
0.3%FS
Temperature range:
0-9999
Color:
Grey or Black
Measurement accuracy:
0.3%FS±0.1°C
Power consumption:
≤5W
Temperature display resolution:
1°C or 0.1°C can choose
Temperature shift:
≤0.01%FS/℃ (typical value is 50ppm/℃)
Power supply:
100-240VAC, -15%, +10% / 50-60Hz; 120-240VDC; 24VDC/AC, -15%, +10%
Electromagnetic compatibility (EMC):
IEC61000-4-4, ± 4KV/5KHz; IEC61000-4-5, 4KV
Operating Ambient:
temperature -10^+60℃; humidity ≤90%RH
name:
Yudian AI-500 led digital indicator
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
STANDARD EXPORT CARTON
Port
XIAMEN
Lead Time :
Shipped in 3 days after payment
Video Description

Yudian AI-500 led digital indicator





eva



500

digital temperature indicator 48x96



Suitable for measuring and displaying temperature, pressure, flow, level, humidity etc



Main features for Yudian AI-500 led digital indicator

  • High measurement accuracy: 0.3%FS ±1°C
  • Programmable and modular input
  • Dual display windows, easy to set parameters and alarms points.
  • Universal input power- 85~264VAC, or 11~26VAC/VDC
  • Alarms can be outputted to different relays or share one.
  • RS485 communication interface
  • Retransmission function
  • CE, RoHS, ISO9001 approved

Dimensions for Yudian AI-500 led digital indicator

SizeFront Panel (W*H)Cut Out (W*H)Depth Behind Mounting SurfaceLight Bar
A96*96mm92*92mm100mmNo
A296*96mm92*92mm100mm25 segments and 4 levels
B160*80mm 152*76mm 100mm No
C80*160mm76*152mm100mmNo
C380*160mm76*152mm100mm50 segments and 2 levels
D72*72mm68*68mm95mmNo
E48*96mm45*92mm100mmNo
F96*48mm92*45mm100mmNo
D248*48mm45*45mm95mmNo



Specification

Control mode

On-off control mode
AI PID Control with Auto Tuning(AT)

Measurement

accuracy

0.3%FS ±1°C

Resolution

0.1°C

Input

Thermocouple: K, S, R, T, E, J, N, WRe3~WRe25, WRe5~WRe26

RTD: Pt100, Cu50

Linear voltage:0~1V, 0~5V,1~5V,0~100mv,0~20mv, 0~60mV

Linear Current: 0~20mA, 4~20mA

Linear resistor: 0~80ohm, 0~400ohm

-9990~3000 defined by user

Input range

K(-100~1300°C),S(0~1700°C),R(0~1600°C),T(-200~390°C),E(0~800°C), J(0~1000°C),B(600~1800°C),Cu50(-50~150°C),PT100(-200~800°C)

Output

(modularized)

Relay output (NO+NC): 250VAC/2A or 30VDC/1A

Linear current : can transmitter process value

General specifications

Voltage: support AC85-265V, 50/60Hz or DC24V.

Power consumption: ≤5W

Electromagnetic compatibility (EMC) : ±4KV/5KHz according to IEC61000-4-4;

4KV according to IEC61000-4-5.

Operating Ambient : temperature -10~60°C; humidity ≤90%RH

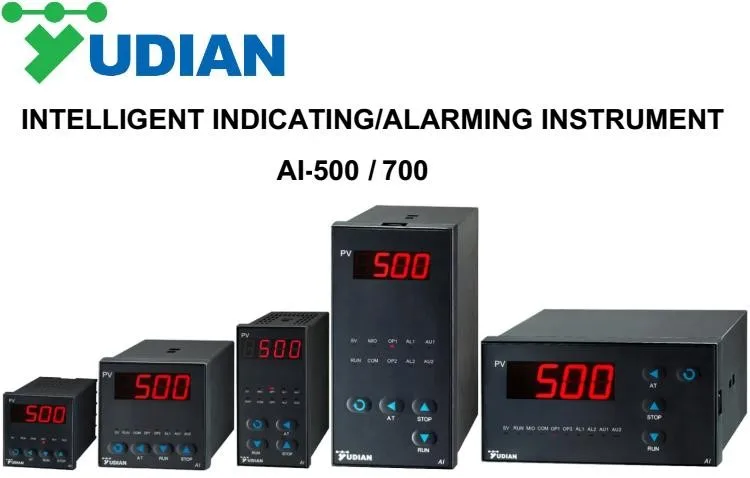

DETAILED IMAGES

5003

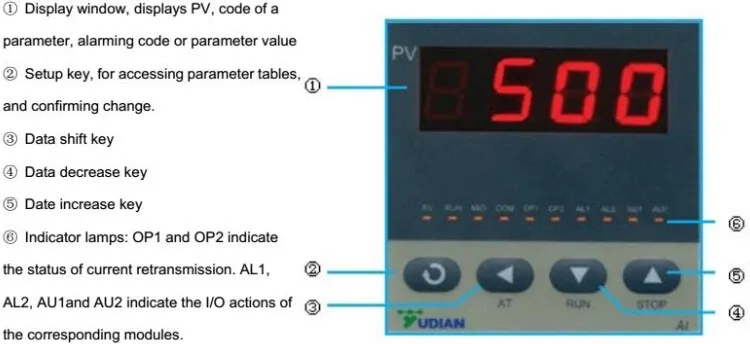

Fron panel and Operation

500

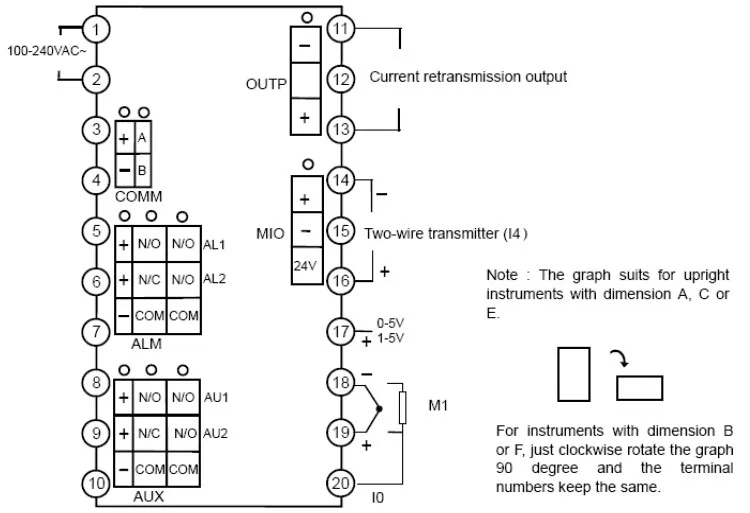

Wiring Diagram



Applicatons

Ideal suitable for temperature process control in plastic industry, food manufacturing, packaging industry, heating ovens and environmental testing equipment, etc.

 digital temperature indicator 48x96

More Products

paste-pic-dp_uuid_a95wm



Packaging & Shipping

paste-pic-dp_uuid_tr8rv

You will get:

  1. A piece of Yudian instrument;
  2. A paper of user manual;
  3. Three/ Five/ Ten years warranty card and Quality Approval card;
  4. A lable of units;
  5. A pair of installaton brackets;
  6. Nice package carton box with Yudian logo.
