YUDIAN AI-808H Series Water Gas Flow Totalizer

FOB Reference Price:Get Latest Price
$93.50 - $161.00 / Unit | 1 Unit/Units (Min. Order)
Usage:
Industrial
Theory:
Temperature Controller
Accuracy:
0.2%FS ± 0.1°C
Temperature range:
0-9999°C
Lead Time:
Quantity(Units) 1 - 10000 >10000
Est. Time(days) 3 Negotiable
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
Yudian
Model Number:
AI-808H
Color:
black/GREY
function:
display,indicate,alarm,measure,control
Supply Ability
Supply Ability:
3000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Standard export boxes for AI-808H Water Gas Flow Totalizer
Port
XIAMEN
Lead Time :
Quantity(Units) 1 - 10000 >10000
Est. Time(days) 3 To be negotiated
Video Description

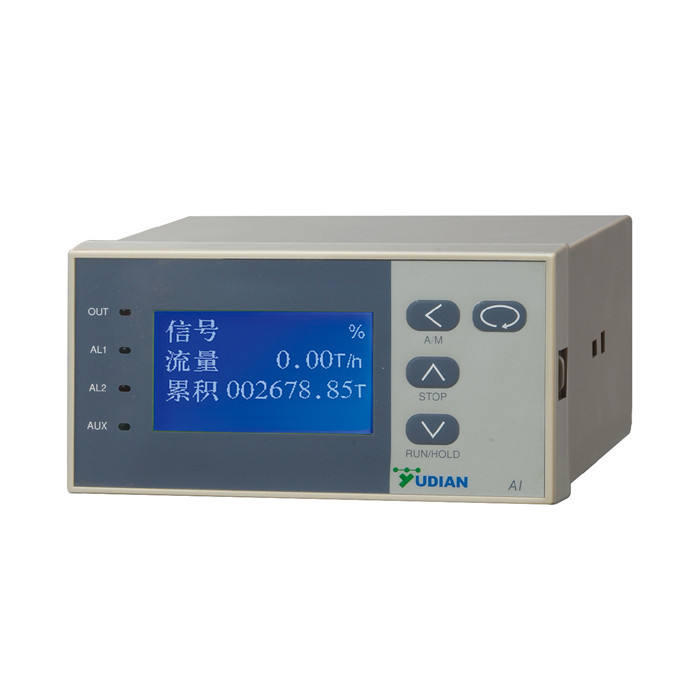

YUDIAN AI-808H Series Water Gas Flow Totalizer









AI-808H Series Flow Totalizers



1.Main features:



1),IInput  4-20mA, 0-20mA or Frequency Input 0-10KHz from DPtransmitter-2),Orifice plate, Vortex, MagFlow or Turbine flowmeter etc..

3),User-friendly interface- Menu based easy programming interface

4,)Passwordsfor configuration and user functions.

5),6-Digit Flowdisplay using square root or linear signal processing.

6),8-Digit Totaliser- Non volatile memory, no batteries to change or fail.

7),Grand-Totaliserrecords flow till date. Both totalisers are retentive and can be reset only with a password.

8),Configurable Flow units. Displays Flow, Total in units which are selectable from a list of normally used units.

9),Alarms: A relay output is available which can be programmed for either Flow or Total, High or Low.

10),Selectable Alarm Reset- Latching, Auto or delayed reset for easy control scheme implementation, ideal for batching or dosing applications.





Specification:

Measurement

accuracy

0.2%FS ± 0.1°C

Resolution

0.1°C

Temperature drift

≤0.01%FS /°C (typical value is 50ppm/°C)

Response time

≤0.3s ( when digital filter parameter dL=0)

Input

Linear voltage: 0~5V, 1~5V, 0~1V, 0~100mV, 0~60mV, 0~20mV, etc.;

 0~10V if module I31 is installed on MIO socket.

Linear current (external connect to precise shunt resist

 or install I4 module on MIO): 0~20mA, 4~20mA, etc.

Linear resistance : 0~80ohm, 0~400ohm.

Output

AUX

Linear current output: 0~20mA, 4~20mA (The output voltage of X module ≥10.5V;

and that of X3 module ≥10.5V.)

General specifications

Voltage: support AC85-265V,50/60Hz or DC24V.

Power consumption: ≤5W or ≤0.8W if no alarm and output

Isolation withstanding voltage :

between power, relay contact or signal terminal ≥2300VDC;

between isolated electroweak terminals ≥600VDC

Electromagnetic compatibility (EMC) : ±4KV/5KHz according to IEC61000-4-4;

4KV according to IEC61000-4-5.

Operating Ambient : temperature -10~60°C; humidity ≤90%RH

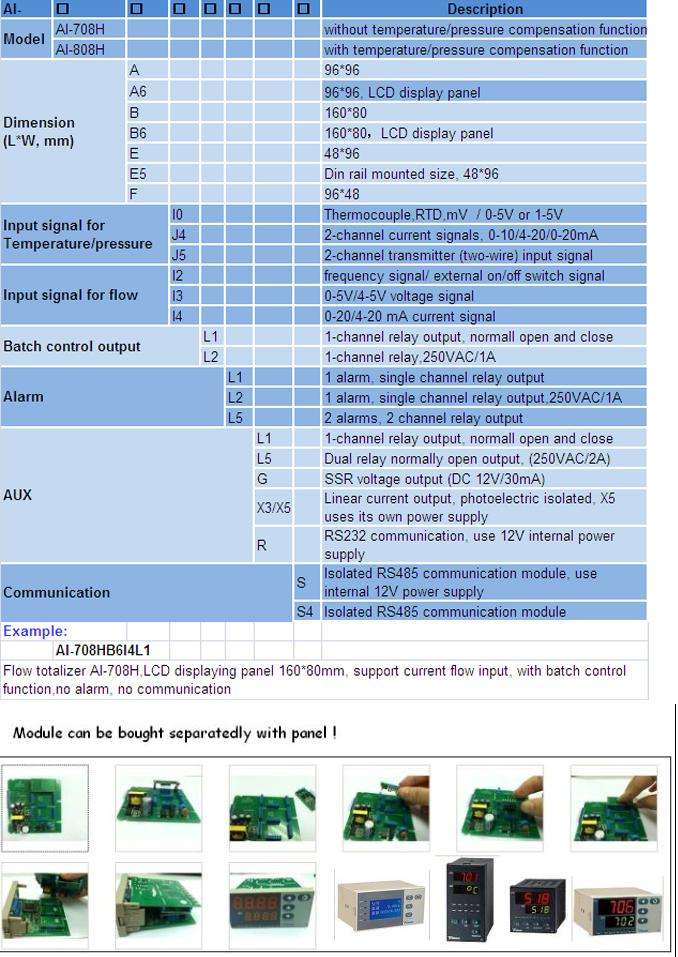

HOW TO ORDER FLOW TOTALIZER









You will get



Other Products



Why choose Yudian?

1)Factory with 25 years experience.

2)Quick delivery ( within 3~5 working days).

3)Retail/Wholesale/OEM/ODM available .

    We expect to cooperate with machinery manufacturers, better price for bulk order.

4)We provide after sales service and technical assistance as per the customers requirement and needs.

Company Information







FAQ

  • Factory with 26 years experience.
  • Two to ten years warranty time.
  • Quick delivery ( within 2 working days).
  • Retail/ Wholesale/ OEM/ ODM available.
  • Better price for bulk order.
  • We provide after sales service and technical assistance as customers requirement and needs.

If you are interested in our products or have any questions, please do not hesitate to contact us.
