1 Accuracy and null Usage Temperature Data Recorder

FOB Reference Price:Get Latest Price
US $89-145 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Yudian
Model Number:
AI-3170S
Usage:
Industrial
Theory:
Temperature Controller
Accuracy:
0.1%FS
Temperature range:
-9999~+9999
Product name:
1 Accuracy and null Usage Temperature Data Recorder
Color:
TFT true color
Operation method:
Touch Screen
Input:
thermocouple, RTD, 4-20mA or 5V/10V
Output:
SSR, relay, SCR or 4-20mA
Size:
7 inch
Image resolution:
800*480mm
Volume:
150MB
Communication:
RS232, RS485,
Power Consumption:
≤5W
Supply Ability
Supply Ability:
600000 Unit/Units per Year
Packaging & Delivery
Packaging Details
Standard export carton with Yudian logo
Port
Xiamen
Lead Time :
Quantity(Units) 1 - 1000 >1000
Est. Time(day) 3 To be negotiated
Video Description
Product description

Yudian touch screen instrument include integrated and split type.



1. AI-3170S/3170W/3190S/3190W split-type paperless recorder

2. AI-3756/3756P/3759/3759P/3956/3956P/3959/3959P series single channel artificial intelligence temperature controller/industrial regulator

3. AI-37028/37048/39028/39048 multi-channel touch screen artificial intelligence temperature controller/industrial regulator

4. AI-3702M/3704M/3906M/3902M/3904M/3906M multi-channel touch screen inicator

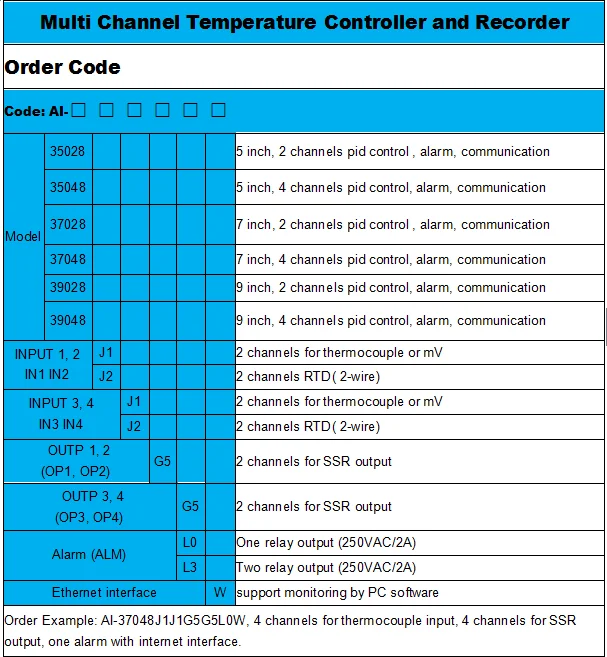

Model defination Guide For multi channel recorder



For Single Channel Controllers

 We have AI-3756/3756P/3759/3759P/3956/3956P/3959/3959P series single channel artificial intelligence temperature controller for selection, can support at least 30 segment programs.



For Multi channel controllers

1. If input channels less than 4, integrated type is recommended, such as AI-37028/37048/39028/39048.

2. If input channel more than 4 channel, split type is advised.  Which means recorder consist of one piece touch screen and several units of controllers.



For Muti channel indicators

1. If input channels less than 6, integrated type is recommended. Such as AI-3702M/3704M/3906M/3902M/3904M/3906M.

2. If input channel more than 6, split type is advised.  Which means recorder consist of one piece touch screen and several units of indicators.



Main specification

1. Dimensions
Screen diagonal: 7 inches
Enclosure front (W*H*D)203 W*150 H*40 D mm
Mounting cutout192 W*139 H mm
2. Display
ColorTFT true color
Resolution (W*H)800*480 pixels
BacklightLong- lifespan LED
Operation methodTouch Screen
3. Memory
Usable memory for application data150 MB
Recording intervalinterval with unit one second (1,2, 3 or 4 etc)
4. Communication
Interface typeRS232, RS485, Ethernet interface10 / 100M adaptive Ethernet interface)
Baud rate1200-19200 bps
5. General Parameters
Electromagnetic compatibility (EMC) : ±4KV/5KHz according to IEC61000-4-4;
4KV according to IEC61000-4-5.
Isolation withstanding voltage:
Between power, relay contact or signal terminals≥2300VDC;
between isolated Electroweak signal terminals≥600VDC
Power supply100~240VAC,-15%~ +10%, 50-60Hz
Power consumption≤5W
Operating ambienceTemperature-10~60℃; Humidity≤ 90%RH
Storage temperature-20~ 80
Net weight: 0.6kg
CoolingNatural
Degree of protectionEquivalent to IP65 (front panel)
